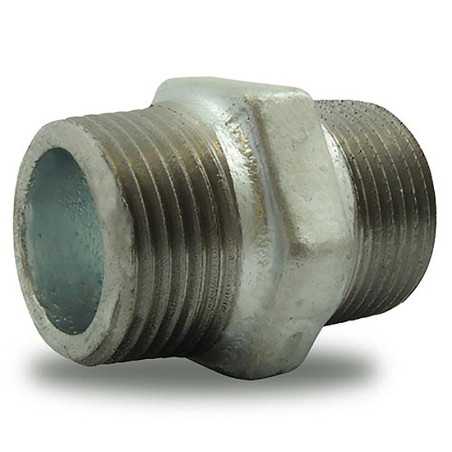

Male/male black-cast nipple
Area of application: distribution of water, drinking water, gas, steam, liquid and non-corrosive gases. CVC systems.
Design, manufacture and control:
- Connections are manufactured in accordance with EN 10242 and ISO 49 standards.
- Nuance of matter: EN-GJMW-400-5 according to EN 1562.
- The finish of the fittings is galvanized (ep. 70 m). Corrosion protection is added by allowing the fittings to be retained.
- All threaded connections are ISO 7-1 (BSPT), with conical male tip (R) and cylindrical female tip (Rp). Free nuts for union connection are gas-type in accordance with ISO 228-1 (BSPP).
- 100% of the fittings are waterproofed.
Technical data sheet
- Summary#1
- Male/male nipple in malleable cast iron
- Summary#2
- Field of application: distribution of water, drinking water, gas, steam, liquid and non-corrosive gases. HVAC systems.
- Summary#3
- The connections are manufactured in accordance with EN 10242 and ISO 49. Material grade: EN-GJMW-400-5 according to EN 1562.
- Summary#4
- The finish of the fittings is galvanized (ep. 70μm). Corrosion protection is added by allowing fittings to be retained
- Summary#5
- All threaded connections comply with ISO 7-1 (BSPT), with conical male tip (R) and cylindrical female tip (Rp).
Specific references
- ean13
- 3760317885826
Combinations | Diameter | Reference | Stock | Price | Add to cart |
Diameter : 1/4'' Reference : 280G-14 Stock : 8 | 1/4'' | 280G-14 | Available now Stock : 8 | €2.95 TTC | €2.95 TTC |
Diameter : 1/2'' Reference : 280G-12 Stock : 0 | 1/2'' | 280G-12 | Shipping in 4-5 days | €1.74 TTC | €1.74 TTC |
Diameter : 3/8'' Reference : 280G-38 Stock : 0 | 3/8'' | 280G-38 | Shipping in 4-5 days | €3.37 TTC | €3.37 TTC |
Diameter : 3/4'' Reference : 280G-34 Stock : 2 | 3/4'' | 280G-34 | Available now Stock : 2 | €2.41 TTC | €2.41 TTC |
Diameter : 1'' Reference : 280G-1 Stock : 6 | 1'' | 280G-1 | Available now Stock : 6 | €3.43 TTC | €3.43 TTC |
Diameter : 1''1/4 Reference : 280G-114 Stock : 0 | 1''1/4 | 280G-114 | Shipping in 4-5 days | €5.57 TTC | €5.57 TTC |
Diameter : 1''1/2 Reference : 280G-112 Stock : 0 | 1''1/2 | 280G-112 | Shipping in 4-5 days | €6.48 TTC | €6.48 TTC |
Diameter : 2'' Reference : 280G-2 Stock : 0 | 2'' | 280G-2 | Shipping in 4-5 days | €11.69 TTC | €11.69 TTC |
Diameter : 2''1/2 Reference : 280G-212 Stock : 0 | 2''1/2 | 280G-212 | Shipping in 4-5 days | €19.90 TTC | €19.90 TTC |
Diameter : 3'' Reference : 280G-3 Stock : 0 | 3'' | 280G-3 | Shipping in 4-5 days | €22.80 TTC | €22.80 TTC |
Diameter : 4'' Reference : 280G-4 Stock : 0 | 4'' | 280G-4 | Shipping in 4-5 days | €84.11 TTC | €84.11 TTC |
