High-ray curve at 90 degrees female male, galvanized, malleable cast iron
Area of application: distribution of water, drinking water, gas, steam, liquid and non-corrosive gases. CVC systems.
Design, manufacture and control:
- Connections are manufactured in accordance with EN 10242 and ISO 49 standards.
- Nuance of matter: EN-GJMW-400-5 according to EN 1562.
- The finish of the fittings is galvanized (ep. 70 m). Corrosion protection is added by allowing the fittings to be retained.

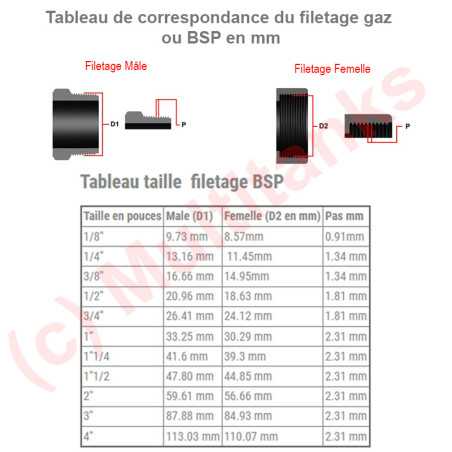

- All threaded connections are ISO 7-1 (BSPT), with conical male tip (R) and cylindrical female tip (Rp). Free nuts for union connection are gas-type in accordance with ISO 228-1 (BSPP).
- 100% of the fittings are waterproofed.
Technical data sheet
- Summary#1
- Curve with large radius at 90 ° male female, galvanized, in malleable cast iron.
- Summary#2
- distribution of water, drinking water, gas, steam, liquid and non-corrosive gases. HVAC systems.
- Summary#3
- - The connections are manufactured in accordance with EN 10242 and ISO 49. - Material nuance: EN-GJMW-400-5 according to EN 1562.
- Summary#4
- The finish of the fittings is galvanized (ep. 70μm). Corrosion protection is added by allowing fittings to be retained
- Summary#5
- All threaded connections comply with ISO 7-1 (BSPT), with conical male tip (R) and cylindrical female tip (Rp). The free nuts for union connection are of the gas type in accordance with ISO 228-1 (BSPP).
Specific references
- ean13
- 3760317884577
Combinations | Diameter | Reference | Stock | Price | Add to cart |
Diameter : 1/4'' Reference : 01GAL-14 Stock : 0 | 1/4'' | 01GAL-14 | Shipping in 4-5 days | €4.46 TTC | €4.46 TTC |
Diameter : 1/2'' Reference : 01GAL-12 Stock : 9 | 1/2'' | 01GAL-12 | Available now Stock : 9 | €4.90 TTC | €4.90 TTC |
Diameter : 3/8'' Reference : 01GAL-38 Stock : 0 | 3/8'' | 01GAL-38 | Shipping in 4-5 days | €5.44 TTC | €5.44 TTC |
Diameter : 3/4'' Reference : 01GAL-34 Stock : 0 | 3/4'' | 01GAL-34 | Shipping in 4-5 days | €8.47 TTC | €8.47 TTC |
Diameter : 1'' Reference : 01GAL-1 Stock : 7 | 1'' | 01GAL-1 | Available now Stock : 7 | €11.64 TTC | €11.64 TTC |
Diameter : 1''1/4 Reference : 01GAL-114 Stock : 0 | 1''1/4 | 01GAL-114 | Shipping in 4-5 days | €20.03 TTC | €20.03 TTC |
Diameter : 1''1/2 Reference : 01GAL-112 Stock : 0 | 1''1/2 | 01GAL-112 | Shipping in 4-5 days | €26.38 TTC | €26.38 TTC |
Diameter : 2'' Reference : 01GAL-2 Stock : 0 | 2'' | 01GAL-2 | Shipping in 4-5 days | €42.70 TTC | €42.70 TTC |
Diameter : 2''1/2 Reference : 01GAL-212 Stock : 0 | 2''1/2 | 01GAL-212 | Shipping in 4-5 days | €91.37 TTC | €91.37 TTC |
Diameter : 3'' Reference : 01GAL-3 Stock : 0 | 3'' | 01GAL-3 | Shipping in 4-5 days | €111.34 TTC | €111.34 TTC |
Diameter : 4'' Reference : 01GAL-4 Stock : 0 | 4'' | 01GAL-4 | Shipping in 4-5 days | €202.12 TTC | €202.12 TTC |
