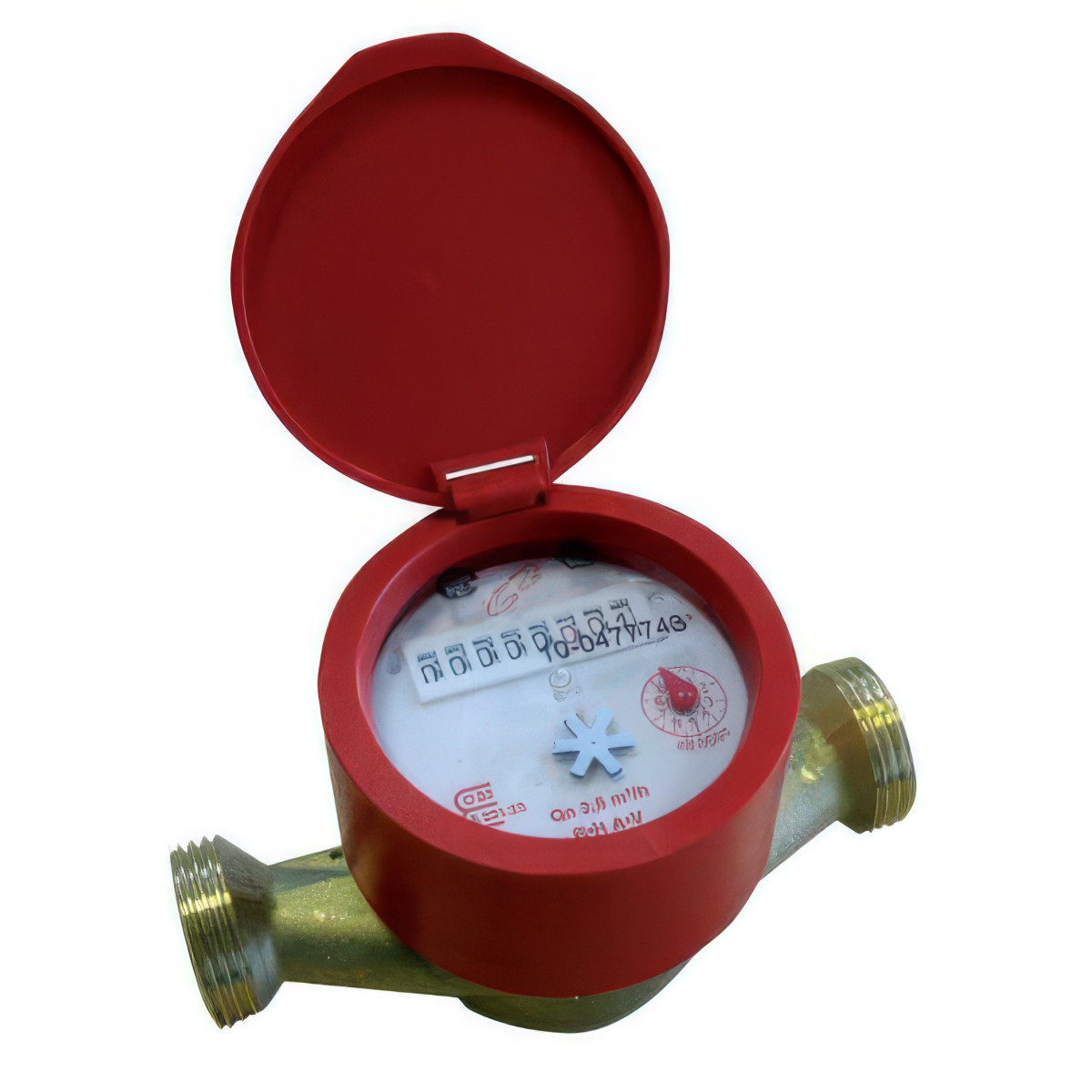

Divisional water meter - hot water

Divisional water meter: Hot water

Single-jet tangential turbine speedometer

Use: Drinking water count for collective and individual habitat
Design: Single-jet turbine. Dry 360-degree dial with protective hood. Magnetic transmission. Direct play on 8 encrypted rolls (0000,000 m3). ISO 228-1 gas thread.

Anti-fraud: Lead, protection from external magnetic fields, anti-crushing pawn.
Matter: Brass body
Mechanical skills: Frost-resistant. Low load losses (0.63 bar max)
Precision class: R80 (horizontal), R50 (upright)
Pressure: PN 16 bar
Installation: Upstream and downstream pipes not necessarily straight (U0D0)
Certifications: MID 2004/22/CE

Temperature: 0C/90C
Delivered without union fitting (ref. 2308 and 2309)
The Q1 and Q2 values of the table are valid for a horizontal mount (R80 class)
