Divisional water meter - cold water

    1520-34

    Divisional water meter - cold water . Drinking water counting for collective and individual habitat

    2 Items
    Diameter
    €50.20
    Tax included
    Last items in stock

    (3,5/5) out of 2 total ratings
    Read the reviews

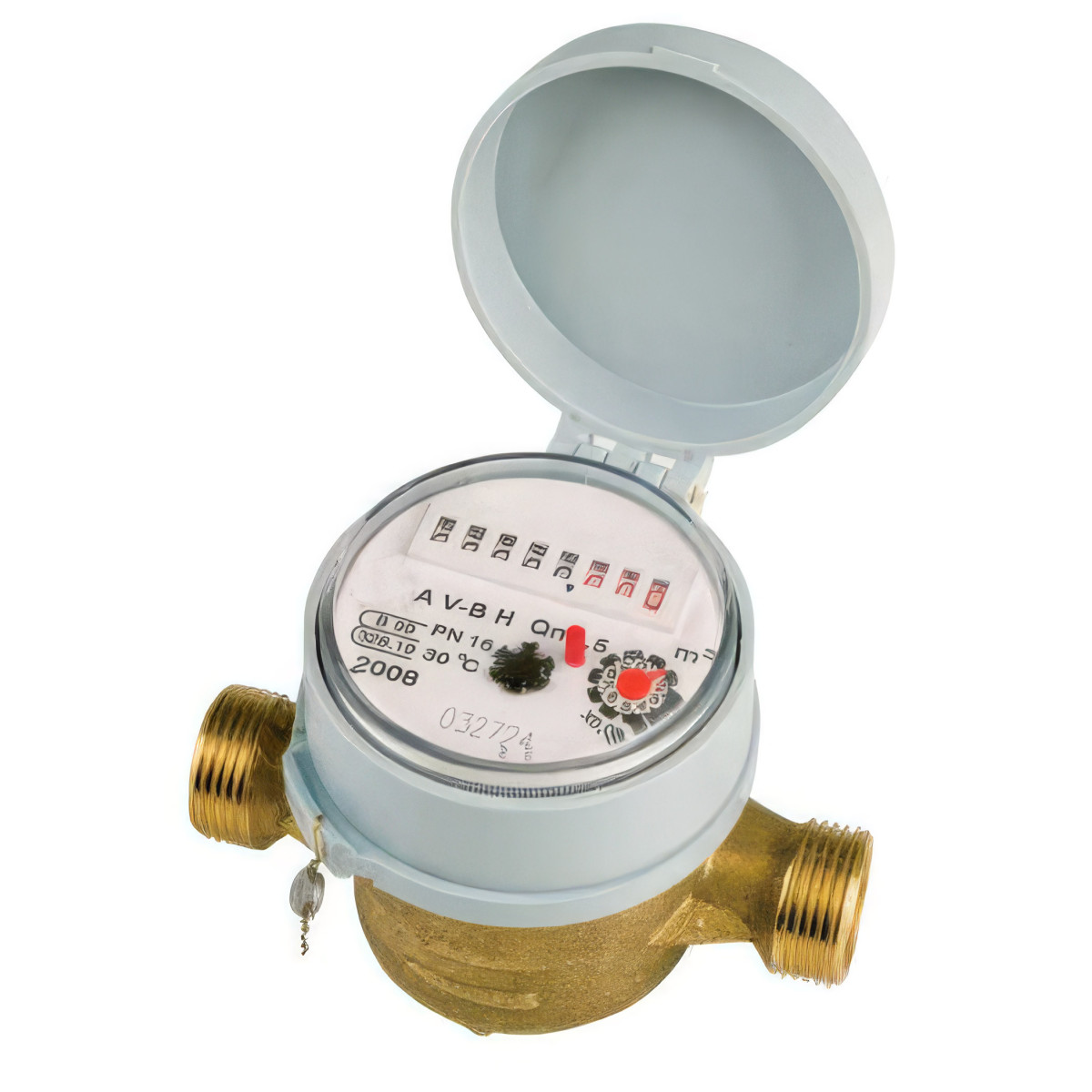

    Divisional water meter - cold water

    Divisional water meter:

    Single-jet tangential turbine speedometer

    Use:
    Drinking water count for collective and individual habitat

    Design: Single-jet turbine. Dry 360-degree dial with protective hood. Magnetic transmission. Direct play on 8 encrypted rolls (0000,000 m3). ISO 228-1 gas thread.

    Anti-fraud: Lead, protection from external magnetic fields, anti-crushing pawn.
    Matter: Brass body
    Mechanical skills: Frost-resistant. Low load losses (0.63 bar max)
    Precision class: R80 (horizontal), R50 (upright)
    Pressure: PN 16 bar
    Installation: Upstream and downstream pipes not necessarily straight (U0D0)
    Certifications: MID 2004/22/CE

    Temperature: 0C/50C
    Delivered without union fitting (ref. 2308 and 2309)
    The Q1 and Q2 values of the table are valid for a horizontal mount (R80 class)



    Ref. multitanks DN (C) Threading Q3 Permanent flow (m3/h) Length Height

    _____________________________________________________________________
    1520-34 15 3/4" 2.5 110 mm 85 mm
    1520-1 20 1" 4,130 mm 85 mm
    Multitanks
    1520-34
    2 Items

    Specific references

    ean13
    3760317882689
    CombinationsDiameterReferenceStockPriceAdd to cart

    Divisional water meter - cold water

    Divisional water meter - cold water

    Diameter : 3/4''

    Reference : 1520-34

    Stock : 2

    3/4''

    1520-34

    Available now

    Stock : 2

    €50.20 TTC

    €50.20 TTC

    Divisional water meter - cold water

    Divisional water meter - cold water

    Diameter : 1''

    Reference : 1520-1

    Stock : 2

    1''

    1520-1

    Available now

    Stock : 2

    €60.76 TTC

    €60.76 TTC
