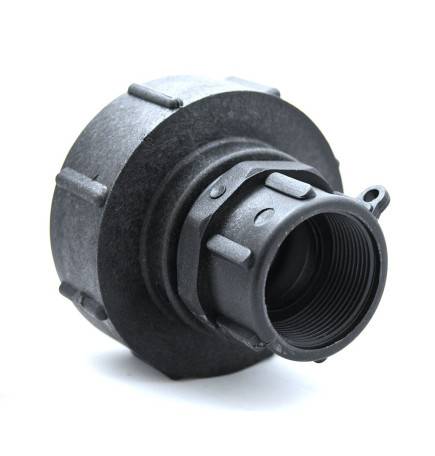

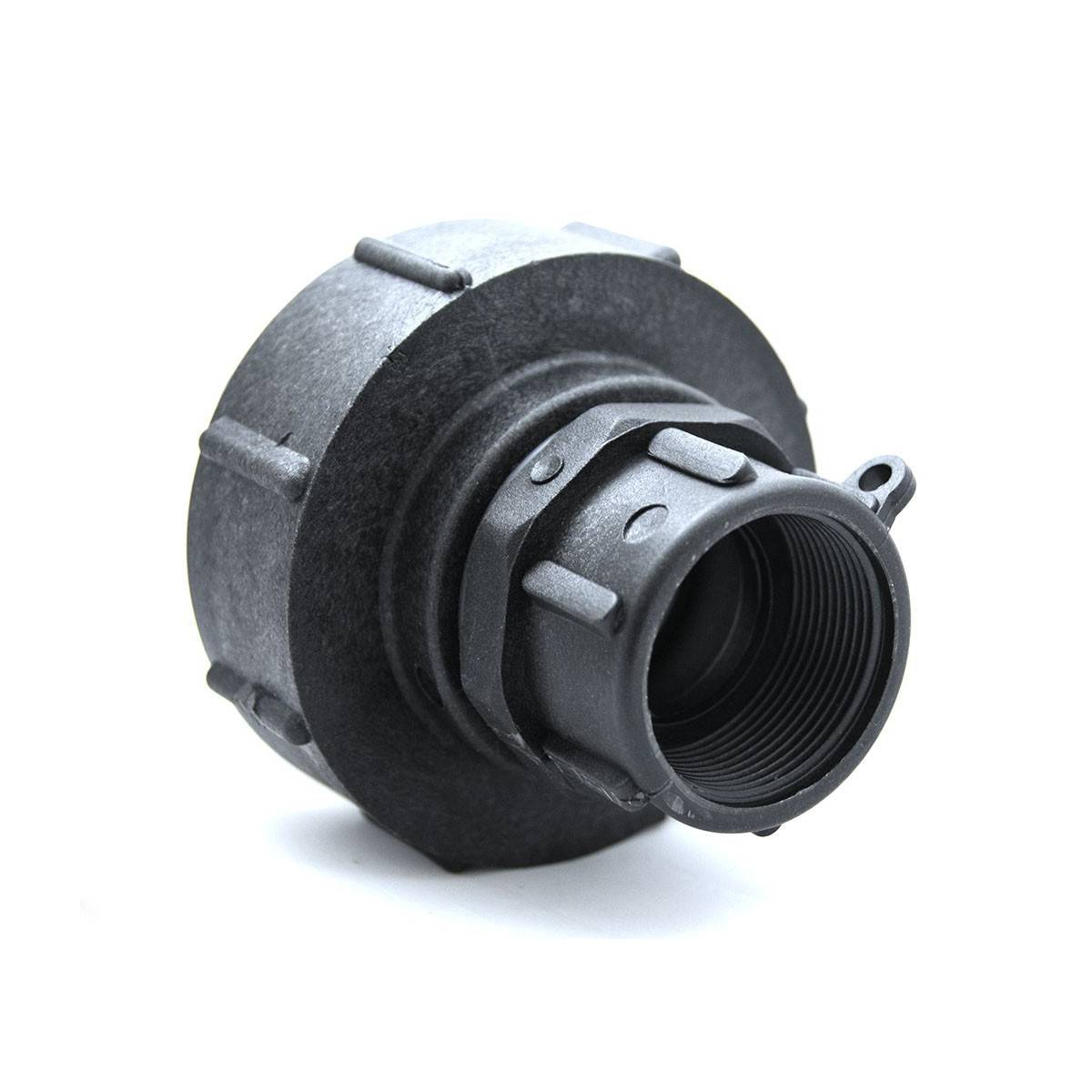

S100x8 female connection - female threading 1''1/2 BSP

Female S100x8 high-strength polypropylene connection with female output 1''1/2 BSP

Product technical description:

Connection: S100x8 nut with female output 1'' 1/2 BSP, polypropylene loaded high-strength fiberglass

Characteristics:

• Entry: Tarauded Female S100x8
• Released: 1''1/2 female BSP
• Average weight: 490g.

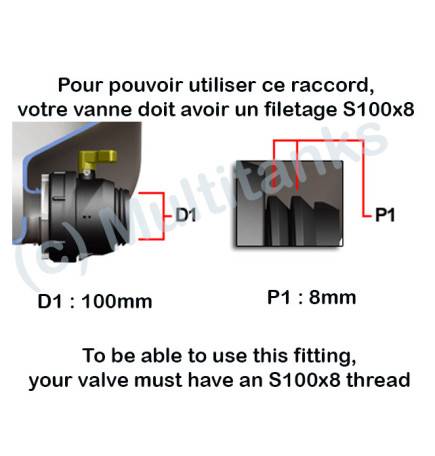

In order to use this connection, your valve must be at the name S100x8 , voic a sketch of the thread in question:

D1: 97 to 100mm (3.82" - 3.94")
P1: 8 mm (0.32")
Nets: 2 to 3
Observation: :
Threading used in particular with the tank manufacturers IBC Schetz, sotralentz and Greif.
