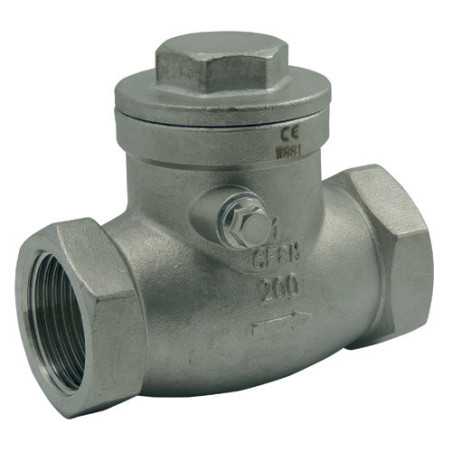

PN16 horizontal stainless steel flap , metal seat

Body and hat in stainless steel 316
Beating and stainless axis 316
Inox plug
PTFE hat and cap joints

Female/Female Connection: ISO 228-1

Temperature of use:
- minimum: -10OC
- maximum: 120oC

PN16 at 20oC

Use:

- Water supply and distribution network, marine environment and other aggressive environment, chemical industries.
- Horizontal or vertical assembly (with ascending fluid)
- Unidirectional (indicator arrow of the direction of the fluid)

Mark Multitanks

Reference 8203-14

Specific references

ean13: 3760317881927

Combinations	Diameter	Reference	Stock	Price	Add to cart
Diameter : 1/4'' Reference : 8203-14 Stock : 0	1/4''	8203-14	Shipping in 4-5 days	€39.87 TTC	€39.87 TTC
Diameter : 1/2'' Reference : 8203-12 Stock : 0	1/2''	8203-12	Shipping in 4-5 days	€45.81 TTC	€45.81 TTC
Diameter : 3/8'' Reference : 8203-38 Stock : 0	3/8''	8203-38	Shipping in 4-5 days	€39.87 TTC	€39.87 TTC
Diameter : 3/4'' Reference : 8203-34 Stock : 0	3/4''	8203-34	Shipping in 4-5 days	€62.12 TTC	€62.12 TTC
Diameter : 1'' Reference : 8203-1 Stock : 0	1''	8203-1	Shipping in 4-5 days	€85.02 TTC	€85.02 TTC
Diameter : 1''1/4 Reference : 8203-114 Stock : 0	1''1/4	8203-114	Shipping in 4-5 days	€127.56 TTC	€127.56 TTC
Diameter : 1''1/2 Reference : 8203-112 Stock : 0	1''1/2	8203-112	Shipping in 4-5 days	€183.51 TTC	€183.51 TTC
Diameter : 2'' Reference : 8203-2 Stock : 0	2''	8203-2	Shipping in 4-5 days	€236.98 TTC	€236.98 TTC
