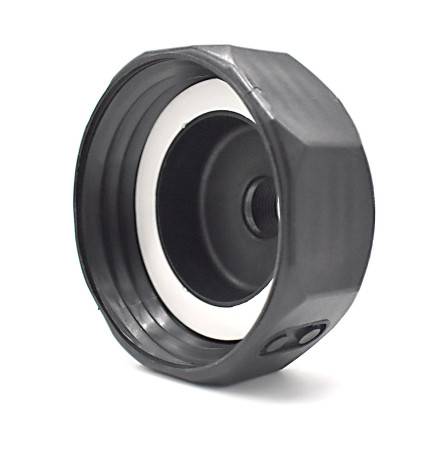

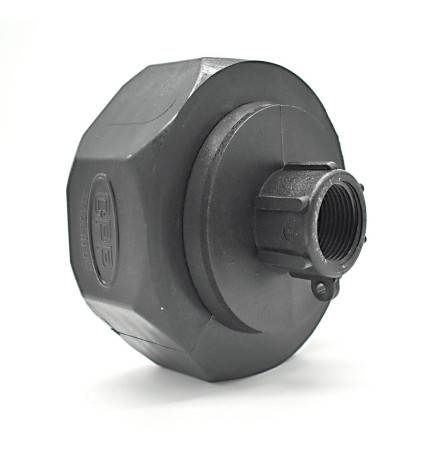

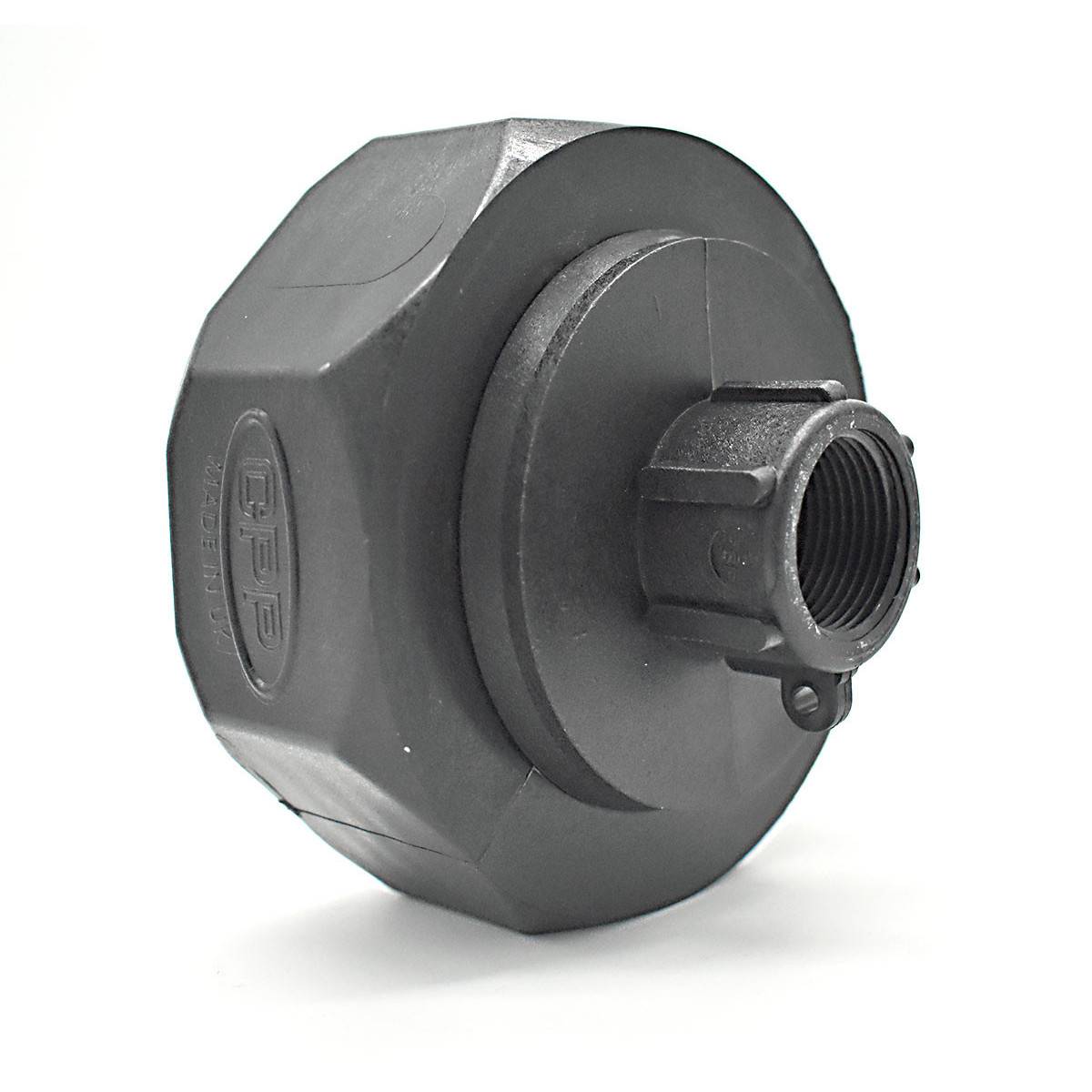

    Raccord femelle S100x8 - sortie femelle 3/4'' BSP avec écrou tournant

    Female fitting S100x8 - female output 3/4'' BSP with rotating nut

    101082
    Female fitting S100x8 - female 3/4'' BSP with rotating nut made of polypropylene + fiberglass for IBC valve with output thread S100x8
    36 Items
    €28.15
    Tax included

    Including €0.00 for ecotax

    Il n'y a pas encore d'avis.


    S100x8 Female Fitting - 3/4'' BSP Female with Polypropylene + Fiberglass Swivel Nut for IBC Valve with S100x8 Outlet Thread

    • Lightweight material
    • Easy maintenance
    • Wide Compatibility
    • Easily integrated into your existing equipment
    • Excellent chemical resistance
    • Polypropylene treated for food contact
    • Twist nut

    Fiberglass-filled polypropylene: High rigidity and good hardness, filled with 30% fiberglass.

    This fitting is used on valves of this type only:

    filetage s100x8

    D1 : 97 to 100mm (3.82" - 3.94")
    P1 : 8 mm (0.32")
    Fillets : 2 to 3
    Observation :
    Thread used in particular with tank manufacturers IBC Schütz, Sotralentz and Greif.

    CPP
    101082
    36 Items

    Technical data sheet

    Summary#1
    This fitting fits all valves with an S100x8 threaded outlet
    Summary#2
    Allows you to easily screw a garden faucet out of your 1000 L tank
    Summary#3
    Rotating nut for easy screwing
    Summary#4
    Material: Fiberglass-filled polypropylene
    Summary#5
    Very high robustness and long service life
    Fitting Input
    Female 3/4'' no BSP gas, Female S100x8
    Fitting Type
    Female / Female
    Material
    Polypropylene
    Fitting Outlet
    Female 3/4'' no BSP gas, Female S100x8
