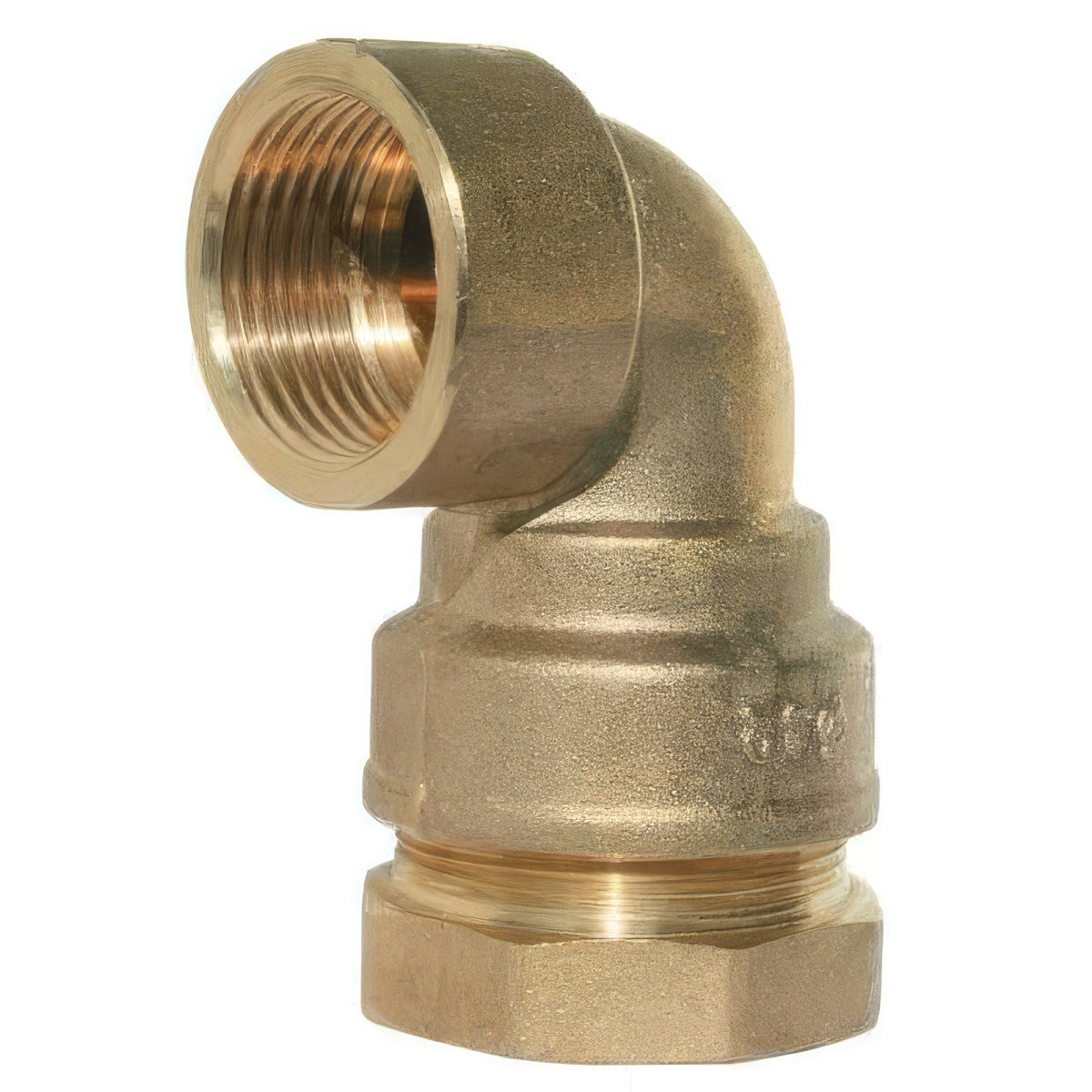

Brass compression elbow with threaded female tip
PE Tube Compression Connections: Female Tip
Use: Drinking water supply, irrigation, watering
Matter: Laiton CW617N, H62 brass notched ring, NBR or EPDM toric joint, stainless steel bolt 304 (from '75)
Connection: Conical threaded tips R and tapped Rpaccording to ISO 7-1 (BSPT)
Design: Standard DIN 8076, Wide chromextra clamp for easy tightening
Connection-keeping plates during the tightening phase adapted to market keys
Flat, wide seal spans on male and female tips
Guaranteed flat seal (thickness from 1mm)
Temperature: 0C / 50C
Pressure: PN 25 bar (16 to 50), PN 16 bar (up to 50)
Certification: In accordance with the amended decree of 29 May 1997 relating to human consumption
Technical data sheet
- Summary#1
- Compression fittings for PE tube: Female end cap
- Summary#2
- Use: Drinking water supply, irrigation, wateringMaterial : CW617N brass, H62 brass notched ring, NBR or EPDM O-ring, 304 stainless steel bolts (from Ø75)
- Summary#3
- Connection: Threaded bits tapered R and threaded Rpaccording to ISO 7-1 standard (BSPT)Design: DIN 8076 standard, Extra wide chrome-plated clamping nut for easy tightening
- Summary#4
- Plates for retaining the fitting during the tightening phase adapted to the keys on the marketFlat and wide joint spans on the male and female end caps
- Summary#5
- Temperature: 0°C / + 50°CPression: PN 25 bar (Ø16 to Ø50), PN 16 bar (greater than Ø50)
Specific references
- ean13
- 3660361270510
Combinations | Diameter | Reference | Stock | Price | Add to cart |
Diameter : A: 20mm B: 1/2'' Reference : 71902012 Stock : 8 | A: 20mm B: 1/2'' | 71902012 | Available now Stock : 8 | €13.97 TTC €9.78 TTC - 30% | €13.97 TTC |
Diameter : A: 25mm B: 1/2'' Reference : 71902512 Stock : 2 | A: 25mm B: 1/2'' | 71902512 | Available now Stock : 2 | €16.71 TTC €11.70 TTC - 30% | €16.71 TTC |
Diameter : A: 25mm B: 3/4'' Reference : 71902534 Stock : 4 | A: 25mm B: 3/4'' | 71902534 | Available now Stock : 4 | €17.93 TTC €12.55 TTC - 30% | €17.93 TTC |
Diameter : A: 32mm B: 1'' Reference : 71903201 Stock : 3 | A: 32mm B: 1'' | 71903201 | Available now Stock : 3 | €29.53 TTC €20.67 TTC - 30% | €29.53 TTC |
Diameter : A: 50mm B: 1'1/2 Reference : 719050112 Stock : 0 | A: 50mm B: 1'1/2 | 719050112 | This product is no longer in stock | €67.03 TTC €46.92 TTC - 30% | €67.03 TTC |
Diameter : A: 63mm B: 2'' Reference : 71906302 Stock : 0 | A: 63mm B: 2'' | 71906302 | This product is no longer in stock | €109.49 TTC €76.64 TTC - 30% | €109.49 TTC |
Diameter : A: 75mm B: 2''1/2 Reference : 719075212 Stock : 0 | A: 75mm B: 2''1/2 | 719075212 | This product is no longer in stock | €168.05 TTC €117.63 TTC - 30% | €168.05 TTC |
Diameter : A: 32mm B: 3/4'' Reference : 71903234 Stock : 1 | A: 32mm B: 3/4'' | 71903234 | Available now Stock : 1 | €28.22 TTC €19.76 TTC - 30% | €28.22 TTC |
Diameter : A: 40mm B: 1''1/4 Reference : 719040114 Stock : 0 | A: 40mm B: 1''1/4 | 719040114 | This product is no longer in stock | €43.95 TTC €30.77 TTC - 30% | €43.95 TTC |
Diameter : A: 40mm B: 1'' Reference : 71904001 Stock : 0 | A: 40mm B: 1'' | 71904001 | This product is no longer in stock | €44.00 TTC €30.80 TTC - 30% | €44.00 TTC |
