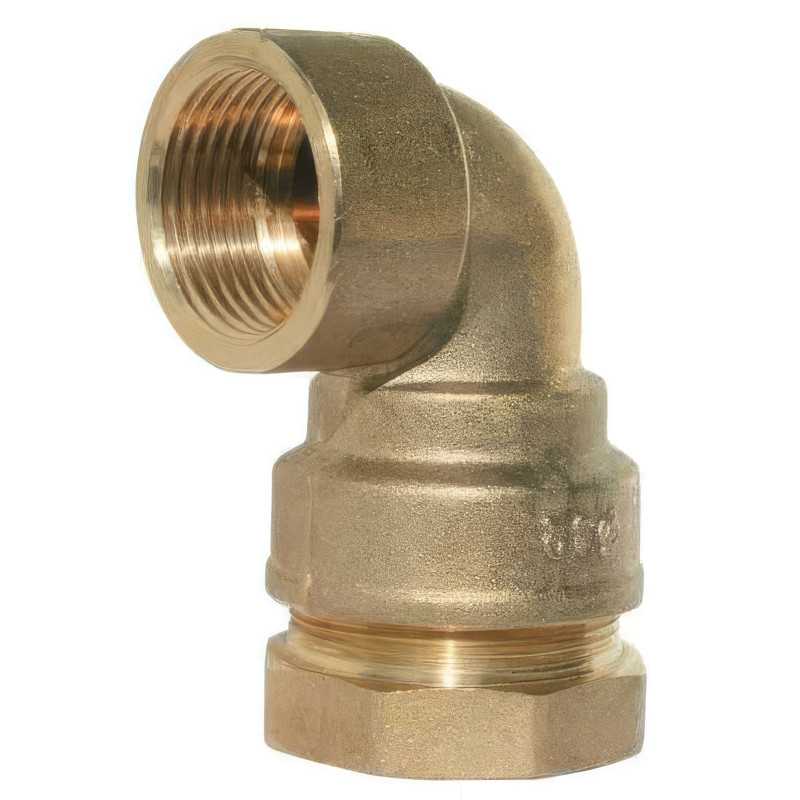

PE Tube Compression Connections: Female Tip

Use: Drinking water supply, irrigation, watering
Matter: Laiton CW617N, H62 brass notched ring, NBR or EPDM toric joint, stainless steel bolt 304 (from '75)
Connection: Conical threaded tips R and tapped Rpaccording to ISO 7-1 (BSPT)
Design: Standard DIN 8076, Wide chromextra clamp for easy tightening
Connection-keeping plates during the tightening phase adapted to market keys
Flat, wide seal spans on male and female tips
Guaranteed flat seal (thickness from 1mm)
Temperature: 0C / 50C
Pressure: PN 25 bar (16 to 50), PN 16 bar (up to 50)
Certification: In accordance with the amended decree of 29 May 1997 relating to human consumption

Mark Ezfitt

Reference 71902012

In stock 8 Items

Technical data sheet

Summary#1: Compression fittings for PE tube: Female end cap
Summary#2: Use: Drinking water supply, irrigation, wateringMaterial : CW617N brass, H62 brass notched ring, NBR or EPDM O-ring, 304 stainless steel bolts (from Ø75)
Summary#3: Connection: Threaded bits tapered R and threaded Rpaccording to ISO 7-1 standard (BSPT)Design: DIN 8076 standard, Extra wide chrome-plated clamping nut for easy tightening
Summary#4: Plates for retaining the fitting during the tightening phase adapted to the keys on the marketFlat and wide joint spans on the male and female end caps
Summary#5: Temperature: 0°C / + 50°CPression: PN 25 bar (Ø16 to Ø50), PN 16 bar (greater than Ø50)

Specific references

ean13: 3660361270510

Combinations	Diameter	Reference	Stock	Price	Add to cart
Diameter : A: 20mm B: 1/2'' Reference : 71902012 Stock : 8	A: 20mm B: 1/2''	71902012	Available now Stock : 8	€13.97 TTC €9.78 TTC - 30%	€13.97 TTC €9.78 TTC (- 30%)
Diameter : A: 25mm B: 1/2'' Reference : 71902512 Stock : 2	A: 25mm B: 1/2''	71902512	Available now Stock : 2	€16.71 TTC €11.70 TTC - 30%	€16.71 TTC €11.70 TTC (- 30%)
Diameter : A: 25mm B: 3/4'' Reference : 71902534 Stock : 4	A: 25mm B: 3/4''	71902534	Available now Stock : 4	€17.93 TTC €12.55 TTC - 30%	€17.93 TTC €12.55 TTC (- 30%)
Diameter : A: 32mm B: 1'' Reference : 71903201 Stock : 3	A: 32mm B: 1''	71903201	Available now Stock : 3	€29.53 TTC €20.67 TTC - 30%	€29.53 TTC €20.67 TTC (- 30%)
Diameter : A: 50mm B: 1'1/2 Reference : 719050112 Stock : 0	A: 50mm B: 1'1/2	719050112	This product is no longer in stock	€67.03 TTC €46.92 TTC - 30%	€67.03 TTC €46.92 TTC (- 30%)
Diameter : A: 63mm B: 2'' Reference : 71906302 Stock : 0	A: 63mm B: 2''	71906302	This product is no longer in stock	€109.49 TTC €76.64 TTC - 30%	€109.49 TTC €76.64 TTC (- 30%)
Diameter : A: 75mm B: 2''1/2 Reference : 719075212 Stock : 0	A: 75mm B: 2''1/2	719075212	This product is no longer in stock	€168.05 TTC €117.63 TTC - 30%	€168.05 TTC €117.63 TTC (- 30%)
Diameter : A: 32mm B: 3/4'' Reference : 71903234 Stock : 1	A: 32mm B: 3/4''	71903234	Available now Stock : 1	€28.22 TTC €19.76 TTC - 30%	€28.22 TTC €19.76 TTC (- 30%)
Diameter : A: 40mm B: 1''1/4 Reference : 719040114 Stock : 0	A: 40mm B: 1''1/4	719040114	This product is no longer in stock	€43.95 TTC €30.77 TTC - 30%	€43.95 TTC €30.77 TTC (- 30%)
Diameter : A: 40mm B: 1'' Reference : 71904001 Stock : 0	A: 40mm B: 1''	71904001	This product is no longer in stock	€44.00 TTC €30.80 TTC - 30%	€44.00 TTC €30.80 TTC (- 30%)
