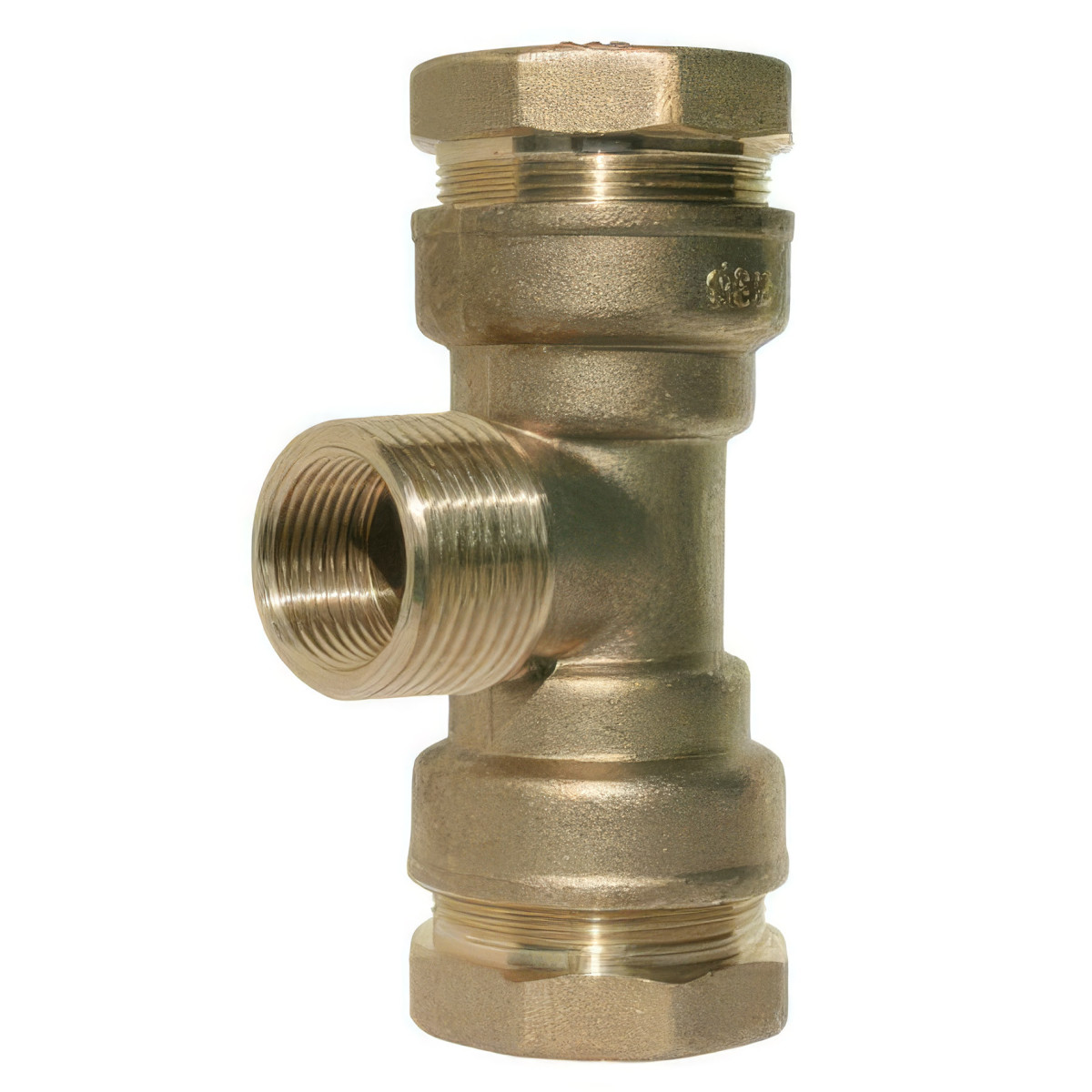

PE Tube Compression Connections: Te with Male Thread and Female Tapping

Use: Drinking water supply, irrigation, watering
Matter: Laiton CW617N, H62 brass notched ring, NBR or EPDM toric joint, stainless steel bolt 304 (from '75)
Connection: Conical threaded tips R and tapped Rpaccording to ISO 7-1 (BSPT)
Design: DIN 8076 standard, Extra wide tightening nut for easy tightening
Connection-keeping plates during the tightening phase adapted to market keys
Flat, wide seal spans on male and female tips
Guaranteed flat seal (thickness from 1mm)
Temperature: 0C / 50C
Pressure: PN 25 bar (16 to 50), PN 16 bar (up to 50)
Certification: In accordance with the amended decree of 29 May 1997 relating to human consumption

Mark Ezfitt

Reference 7133253412

In stock 9 Items

Technical data sheet

Summary#1: Compression fittings for PE tube: Tee with male thread and female thread
Summary#2: Use: Drinking water supply, irrigation, wateringMaterial : CW617N brass, H62 brass notched ring, NBR or EPDM O-ring, 304 stainless steel bolts (from Ø75)
Summary#3: Connection: Threaded bits tapered R and threaded Rpaccording to ISO 7-1 standard (BSPT)Design: DIN 8076 standard, Extra wide clamping nut for easy tightening
Summary#4: Plates for retaining the fitting during the tightening phase adapted to the keys on the marketFlat and wide joint spans on the male and female end caps
Summary#5: Temperature: 0°C / + 50°CPression: PN 25 bar (Ø16 to Ø50), PN 16 bar (greater than Ø50)

Specific references

ean13: 3660361270442

Combinations	Diameter	Reference	Stock	Price	Add to cart
Diameter : A: 20mm___ B: 1/2'' - C: 3/8'' Reference : 7133201238 Stock : 0	A: 20mm___ B: 1/2'' - C: 3/8''	7133201238	This product is no longer in stock	€23.46 TTC €16.42 TTC - 30%	€23.46 TTC €16.42 TTC (- 30%)
Diameter : A: 25mm___ B: 1/2'' - C: 3/8'' Reference : 7133251238 Stock : 0	A: 25mm___ B: 1/2'' - C: 3/8''	7133251238	This product is no longer in stock	€29.13 TTC €20.39 TTC - 30%	€29.13 TTC €20.39 TTC (- 30%)
Diameter : A: 25mm___ B: 3/4'' - C: 1/2'' Reference : 7133253412 Stock : 9	A: 25mm___ B: 3/4'' - C: 1/2''	7133253412	Available now Stock : 9	€29.06 TTC €20.34 TTC - 30%	€29.06 TTC €20.34 TTC (- 30%)
Diameter : A: 32mm___ B: 3/4'' - C: 1/2'' Reference : 7133323412 Stock : 3	A: 32mm___ B: 3/4'' - C: 1/2''	7133323412	Available now Stock : 3	€41.23 TTC €28.86 TTC - 30%	€41.23 TTC €28.86 TTC (- 30%)
Diameter : A: 32mm___ B: 1'-C: 3/4'' Reference : 7133320134 Stock : 0	A: 32mm___ B: 1'-C: 3/4''	7133320134	This product is no longer in stock	€41.10 TTC €28.77 TTC - 30%	€41.10 TTC €28.77 TTC (- 30%)
Diameter : A: 40mm___ B: 1'-C: 3/4'' Reference : 7133400134 Stock : 2	A: 40mm___ B: 1'-C: 3/4''	7133400134	Available now Stock : 2	€62.26 TTC €43.58 TTC - 30%	€62.26 TTC €43.58 TTC (- 30%)
Diameter : A: 40mm___ B: 1'1/4 - C: 1'' Reference : 7133401141 Stock : 0	A: 40mm___ B: 1'1/4 - C: 1''	7133401141	This product is no longer in stock	€62.86 TTC €44.00 TTC - 30%	€62.86 TTC €44.00 TTC (- 30%)
Diameter : A: 50mm___ B: 1'1/4 - C: 1'' Reference : 7133501141 Stock : 0	A: 50mm___ B: 1'1/4 - C: 1''	7133501141	This product is no longer in stock	€98.08 TTC €68.66 TTC - 30%	€98.08 TTC €68.66 TTC (- 30%)
Diameter : A: 50mm___ B: 1'1/2 - C: 1''1/4 Reference : 713350112114 Stock : 1	A: 50mm___ B: 1'1/2 - C: 1''1/4	713350112114	Available now Stock : 1	€107.32 TTC €75.13 TTC - 30%	€107.32 TTC €75.13 TTC (- 30%)
Diameter : A: 63mm___ B: 1'1/2 - C: 1''1/4 Reference : 713363112114 Stock : 0	A: 63mm___ B: 1'1/2 - C: 1''1/4	713363112114	This product is no longer in stock	€165.72 TTC €116.00 TTC - 30%	€165.72 TTC €116.00 TTC (- 30%)
Diameter : A: 63mm___ B: 2''-C: 1''1/2 Reference : 7133632112 Stock : 0	A: 63mm___ B: 2''-C: 1''1/2	7133632112	This product is no longer in stock	€178.44 TTC €124.91 TTC - 30%	€178.44 TTC €124.91 TTC (- 30%)
Diameter : A: 75mm___ B: 2'1/2 - C: 2'' Reference : 7133752122 Stock : 0	A: 75mm___ B: 2'1/2 - C: 2''	7133752122	This product is no longer in stock	€279.02 TTC €195.31 TTC - 30%	€279.02 TTC €195.31 TTC (- 30%)
Diameter : A: 90mm___ B: 3'-C: 2''1/2 Reference : 7133903212 Stock : 0	A: 90mm___ B: 3'-C: 2''1/2	7133903212	This product is no longer in stock	€426.52 TTC €298.57 TTC - 30%	€426.52 TTC €298.57 TTC (- 30%)
