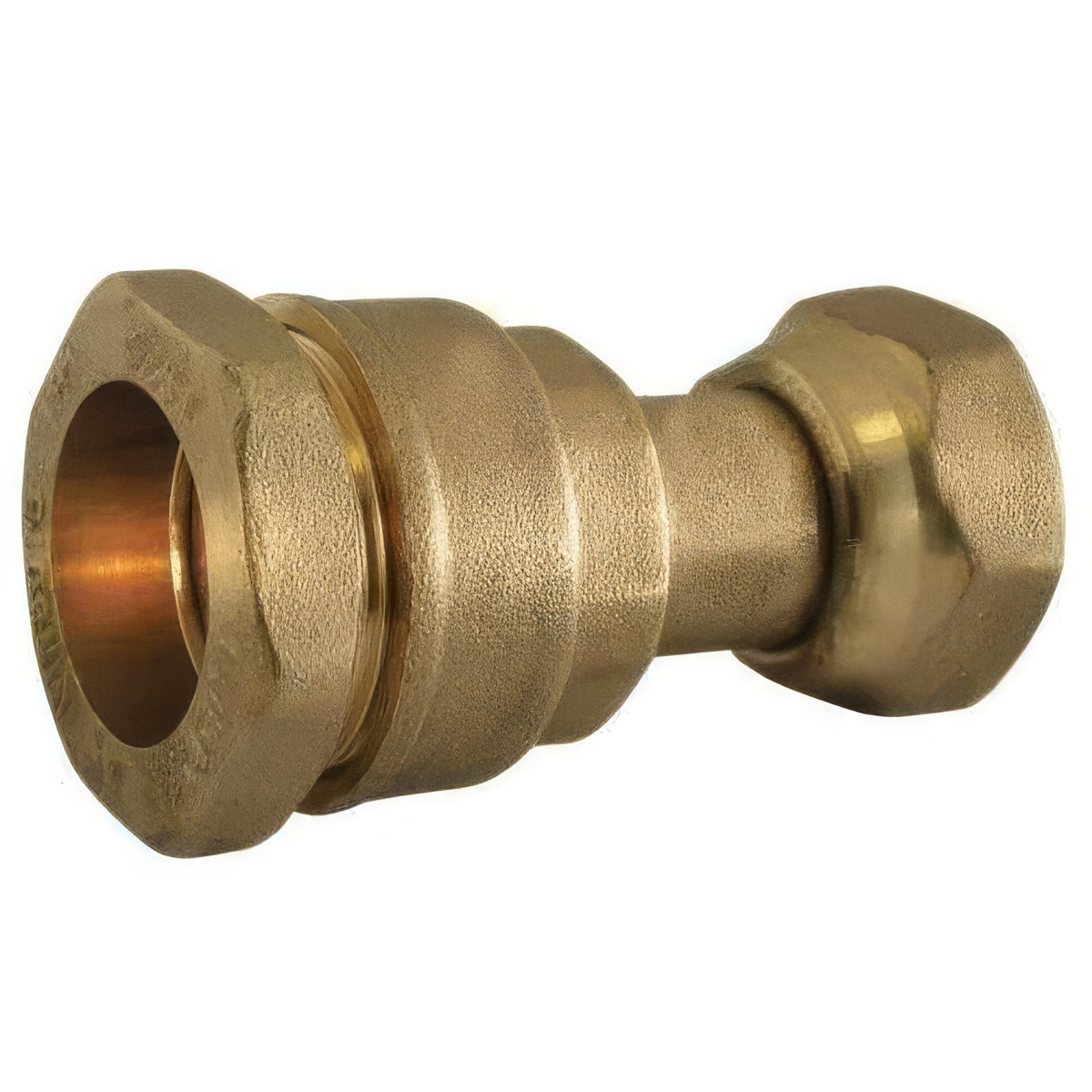

Straight brass compression connection with female free nut

COMPRESSION connections for PE tube: Female tip (Free Nut)

Use: Drinking water supply, irrigation, watering
Matter: CW617N Brass Laiton, H62 Brass Notched Ring, NBR Toric Joint or EPDM
Connection: Iso 228-1 (BSPP) tapping "G"
Design: DIN 8076 standard, Extra wide tightening nut for easy tightening
Temperature: 0C / 50C
Pressure: PN 25 bar (16 to 50), PN 16 bar (up to 50)
Certification: In accordance with the amended decree of 29 May 1997 relating to human consumption
Connection-keeping plates during the tightening phase adapted to market keys
Flat, wide seal spans on male and female tips
Guaranteed flat seal (thickness from 1mm)

Mark Ezfitt

Reference 72722034

In stock 9 Items

Technical data sheet

Summary#1: Compression fittings for PE tube: Female End Cap (Free Nut)
Summary#2: Use: Drinking water supply, irrigation, irrigationMaterial: CW617N brass, H62 brass notched ring, NBR or EPDM O-ring
Summary#3: Connection: "G" thread according to ISO 228-1 (BSPP)Design: DIN 8076, Extra wide clamping nut for easy clamping
Summary#4: Temperature: 0°C / + 50°CPression: PN 25 bar (Ø16 to Ø50), PN 16 bar (greater than Ø50)
Summary#5: Certification: Complies with the amended decree of 29 May 1997 relating to human consumptionPlates for holding the connection during the tightening phase adapted to the keys on the market

Specific references

ean13: 3660361271043

Combinations	Diameter	Reference	Stock	Price	Add to cart
Diameter : A: 20mm B: 3/4'' Reference : 72722034 Stock : 9	A: 20mm B: 3/4''	72722034	Available now Stock : 9	€18.07 TTC €12.65 TTC - 30%	€18.07 TTC €12.65 TTC (- 30%)
Diameter : A: 25mm B: 3/4'' Reference : 72722534 Stock : 6	A: 25mm B: 3/4''	72722534	Available now Stock : 6	€19.50 TTC €13.65 TTC - 30%	€19.50 TTC €13.65 TTC (- 30%)
Diameter : A: 25mm B: 1'' Reference : 7272251 Stock : 13	A: 25mm B: 1''	7272251	Available now Stock : 13	€21.24 TTC €14.87 TTC - 30%	€21.24 TTC €14.87 TTC (- 30%)
Diameter : A: 32mm B: 1'' Reference : 7272321 Stock : 9	A: 32mm B: 1''	7272321	Available now Stock : 9	€28.98 TTC €20.28 TTC - 30%	€28.98 TTC €20.28 TTC (- 30%)
Diameter : A: 20mm B: 1'' Reference : 7272201 Stock : 0	A: 20mm B: 1''	7272201	delivery within a week	€19.13 TTC €13.39 TTC - 30%	€19.13 TTC €13.39 TTC (- 30%)
