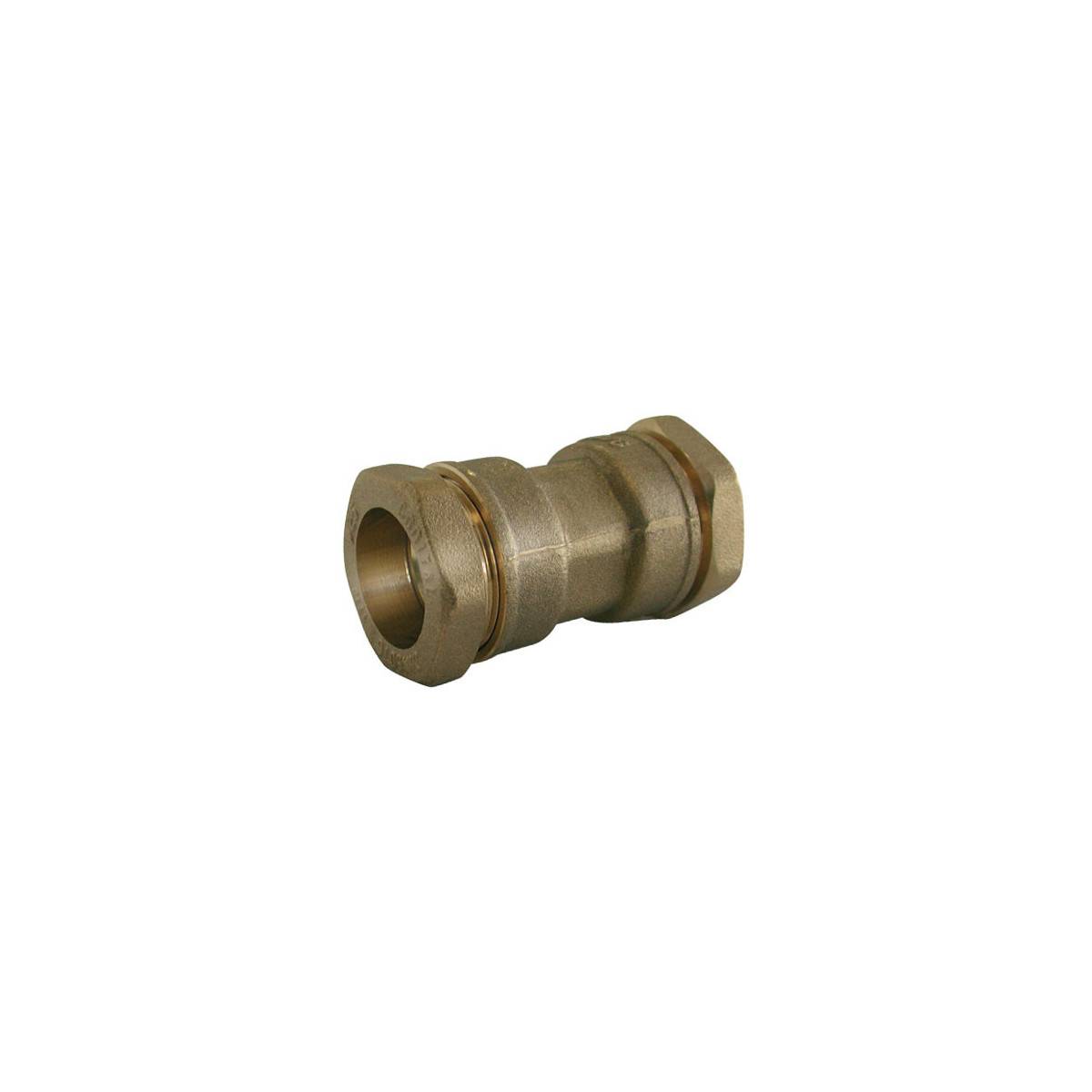

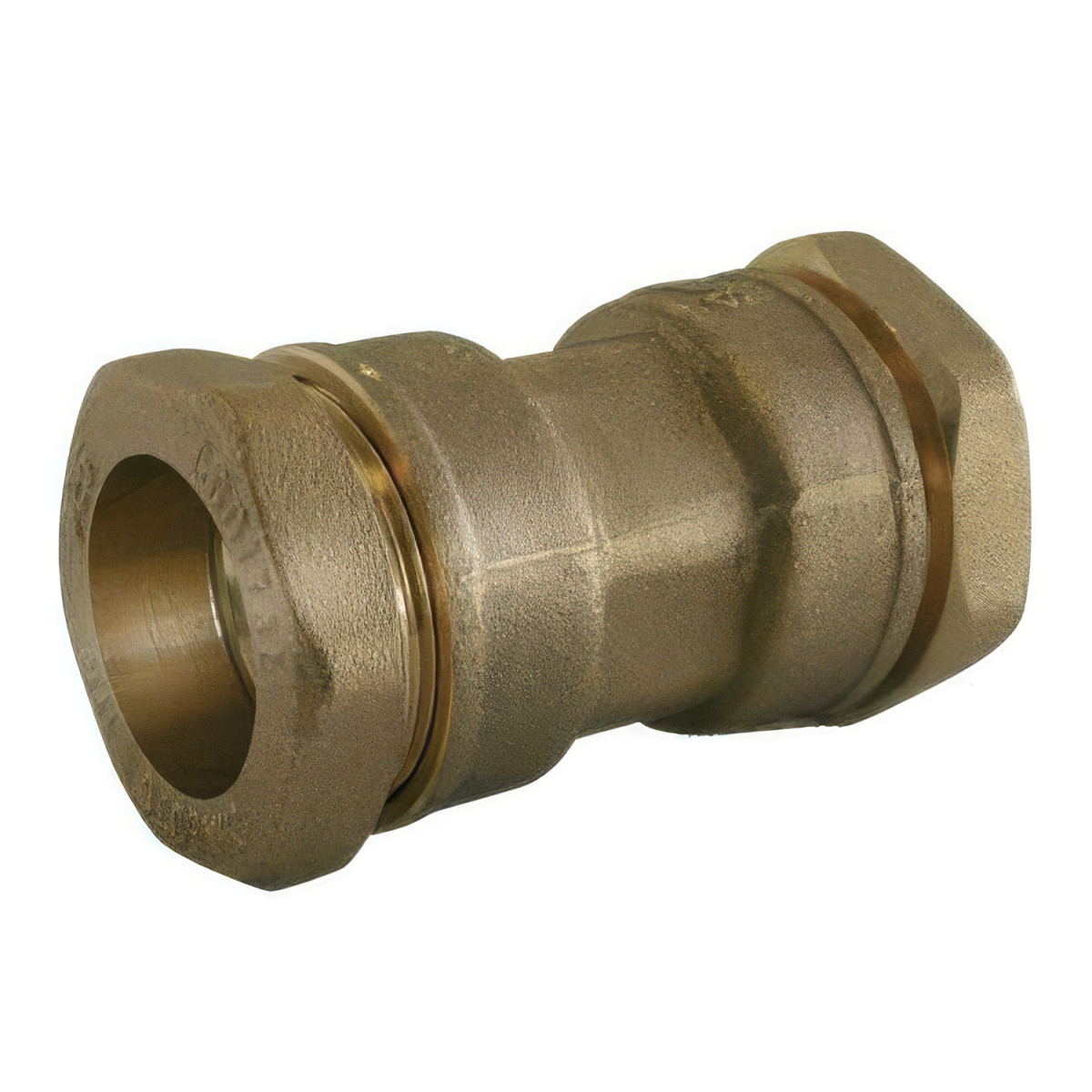

Brass compression mating sleeve for PE tube

COMPRESSION connections for PE tube: Mating sleeve

Use: Drinking water supply, irrigation, watering
Matter: Laiton CW617N, H62 brass notched ring, NBR or EPDM toric joint, stainless steel bolt 304 (from '75)
Design: DIN 8076 standard, Extra wide tightening nut for easy tightening
Temperature: 0C / 50C
Pressure: PN 25 bar (16 to 50), PN 16 bar (up to 50)
Certification: In accordance with the amended decree of 29 May 1997 relating to human consumption
Connection-keeping plates during the tightening phase adapted to market keys

Mark Ezfitt

Reference 727016

In stock 8 Items

Technical data sheet

Summary#1: Compression fittings for PE tube: Coupling sleeve
Summary#2: Use: Drinking water supply, irrigation, wateringMaterial : CW617N brass, H62 brass notched ring, NBR or EPDM O-ring, 304 stainless steel bolts (from Ø75)
Summary#3: Design: DIN 8076 standard, Extra wide clamping nut for easy clampingTemperature: 0°C / + 50°C
Summary#4: Pressure: PN 25 bar (Ø16 to Ø50), PN 16 bar (greater than Ø50)
Summary#5: Certification: Complies with the amended decree of 29 May 1997 relating to human consumption

Specific references

ean13: 3660361270589

Combinations	Diameter	Reference	Stock	Price	Add to cart
Diameter : 20mm Reference : 727020 Stock : 0	20mm	727020	This product is no longer in stock	€16.08 TTC €11.25 TTC - 30%	€16.08 TTC €11.25 TTC (- 30%)
Diameter : 25mm Reference : 727025 Stock : 12	25mm	727025	Available now Stock : 12	€18.46 TTC €12.92 TTC - 30%	€18.46 TTC €12.92 TTC (- 30%)
Diameter : 32mm Reference : 727032 Stock : 0	32mm	727032	This product is no longer in stock	€29.32 TTC €20.53 TTC - 30%	€29.32 TTC €20.53 TTC (- 30%)
Diameter : 40mm Reference : 727040 Stock : 0	40mm	727040	This product is no longer in stock	€50.68 TTC €35.48 TTC - 30%	€50.68 TTC €35.48 TTC (- 30%)
Diameter : 50mm Reference : 727050 Stock : 0	50mm	727050	This product is no longer in stock	€78.25 TTC €54.77 TTC - 30%	€78.25 TTC €54.77 TTC (- 30%)
Diameter : 63mm Reference : 727063 Stock : 0	63mm	727063	This product is no longer in stock	€142.38 TTC €99.66 TTC - 30%	€142.38 TTC €99.66 TTC (- 30%)
Diameter : 75mm Reference : 727075 Stock : 0	75mm	727075	This product is no longer in stock	€214.96 TTC €150.47 TTC - 30%	€214.96 TTC €150.47 TTC (- 30%)
Diameter : 90mm Reference : 727090 Stock : 0	90mm	727090	This product is no longer in stock	€419.26 TTC €293.48 TTC - 30%	€419.26 TTC €293.48 TTC (- 30%)
Diameter : 16mm Reference : 727016 Stock : 8	16mm	727016	Available now Stock : 8	€17.34 TTC €12.14 TTC - 30%	€17.34 TTC €12.14 TTC (- 30%)
