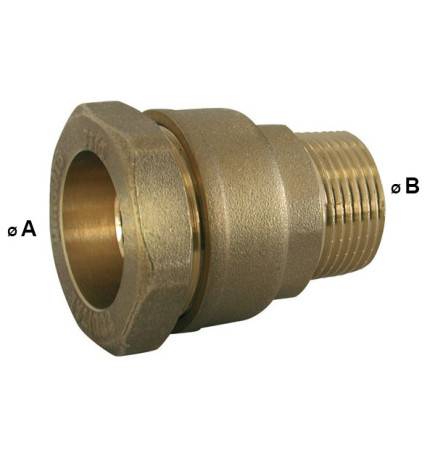

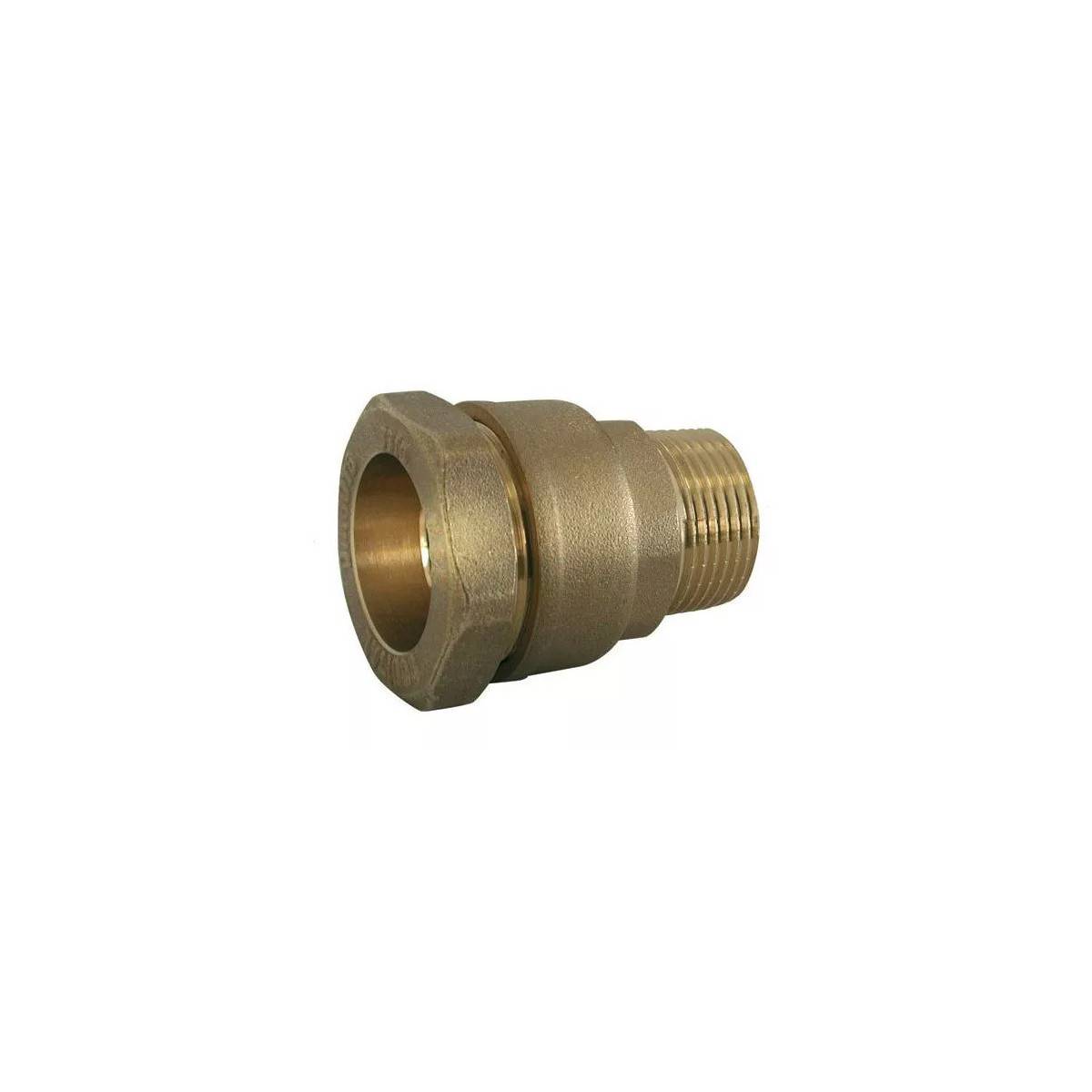

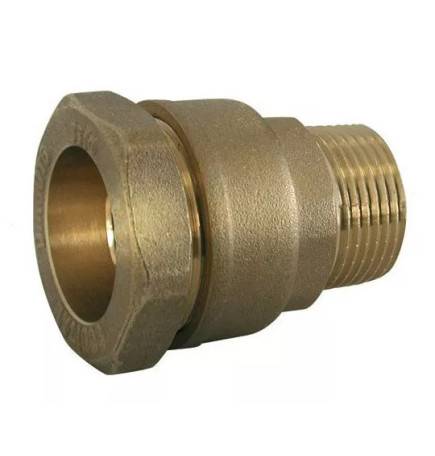

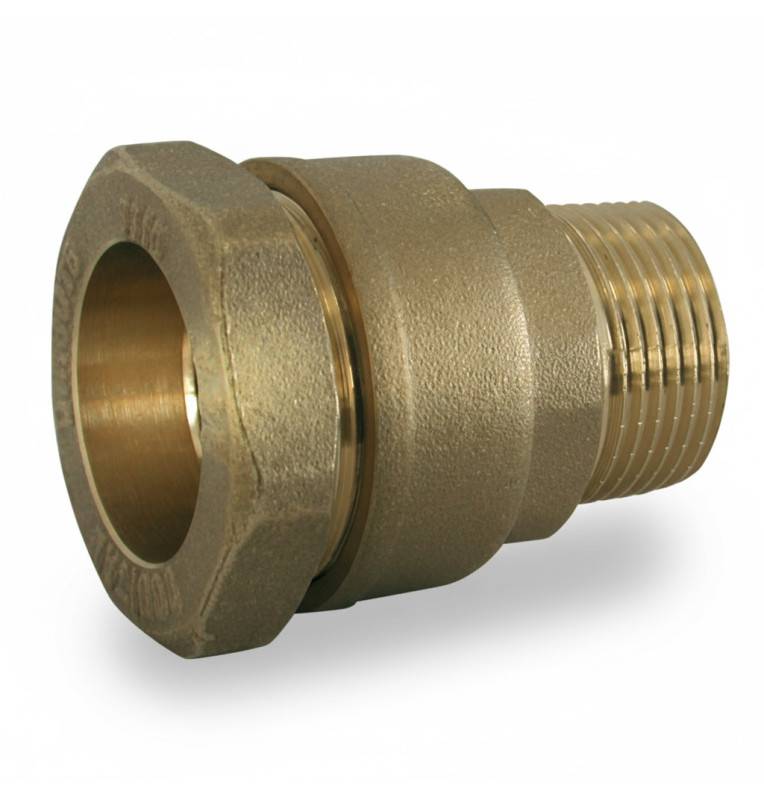

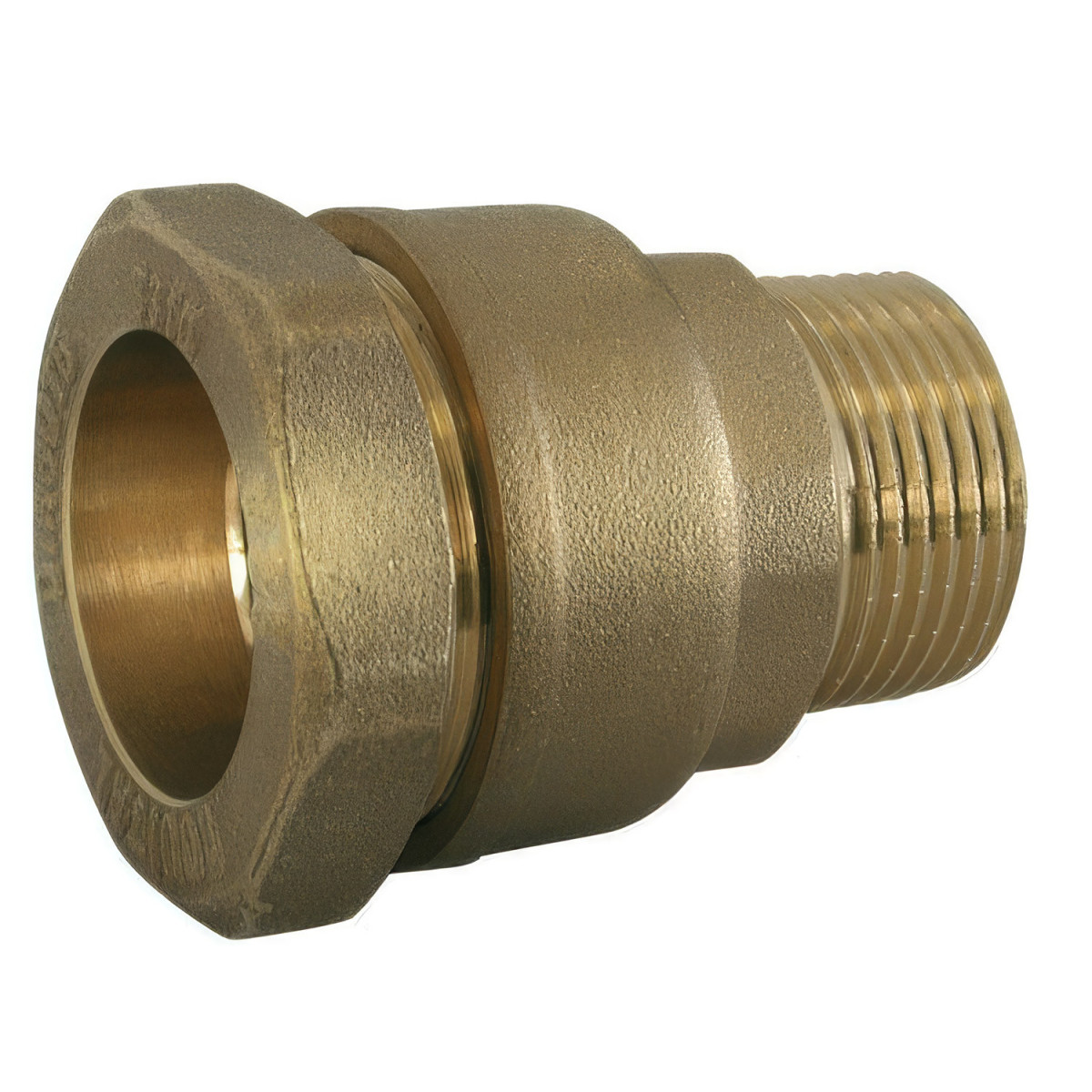

7341 - MALE STRAIGHT COMPRESSION FITTING

Applications: Drinking water supply, irrigation

Terms of Use:
- Temperatures: 0°C / +50°C
- Pressure: PN 25 bar (Ø16 to Ø50), PN 16 bar (> Ø50)
- For PE pipe

Conception:
- DIN 8076

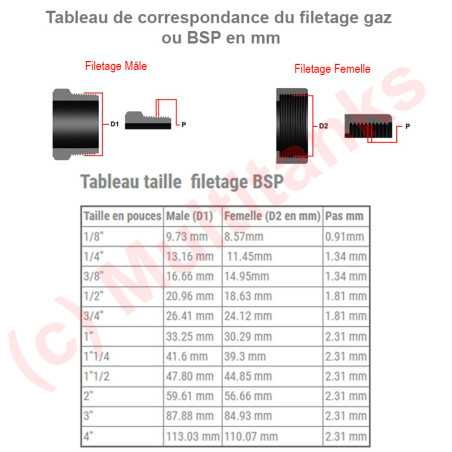

- BSPT ISO 7-1 tapered thread (R)
- Extra-large clamping nut for easy tightening

Materials:
- Brass CW617N
- H62 brass notched ring
- O-ring made of NBR or EPDM
- 304 stainless steel bolts (from Ø75)

Certification: ACS

Mark Ezfitt

Reference 7341-1638

In stock 9 Items

Technical data sheet

Summary#1: MALE STRAIGHT COMPRESSION FITTING
Summary#2: Applications: Drinking water supply, irrigationTemperatures: 0°C / + 50°C
Summary#3: Pressure: PN 25 bar (Ø16 to Ø50), PN 16 bar (greater than Ø50)
Summary#4: DIN 8076BSPT ISO 7-1 tapered (R) threadExtra wide clamping nut for easy clamping
Summary#5: Brass CW617NBacked brass H62 O-ringNBR or EPDM O-ring304 stainless steel (from Ø75)

Specific references

ean13: 3660361270831

Review the product

Costaud et efficace !

Facile à mettre en oeuvre et fait son travail.

By Denis B. the 02/08/2024

Combinations	Diameter	Reference	Stock	Price	Add to cart
Diameter : A: 16mm B: 1/2'' Reference : 7341-1612 Stock : 3	A: 16mm B: 1/2''	7341-1612	Available now Stock : 3	€10.41 TTC €7.29 TTC - 30%	€10.41 TTC €7.29 TTC (- 30%)
Diameter : A: 20mm B: 1/2'' Reference : 7341-2012 Stock : 18	A: 20mm B: 1/2''	7341-2012	Available now Stock : 18	€9.15 TTC €6.41 TTC - 30%	€9.15 TTC €6.41 TTC (- 30%)
Diameter : A: 20mm B: 3/4'' Reference : 7341-2034 Stock : 16	A: 20mm B: 3/4''	7341-2034	Available now Stock : 16	€12.22 TTC €8.56 TTC - 30%	€12.22 TTC €8.56 TTC (- 30%)
Diameter : A: 25mm B: 1/2'' Reference : 7341-2512 Stock : 6	A: 25mm B: 1/2''	7341-2512	Available now Stock : 6	€12.88 TTC €9.02 TTC - 30%	€12.88 TTC €9.02 TTC (- 30%)
Diameter : A: 25mm B: 3/4'' Reference : 7341-2534 Stock : 18	A: 25mm B: 3/4''	7341-2534	Available now Stock : 18	€11.04 TTC €7.73 TTC - 30%	€11.04 TTC €7.73 TTC (- 30%)
Diameter : A: 40mm B: 1'1/2 Reference : 7341-40112 Stock : 0	A: 40mm B: 1'1/2	7341-40112	This product is no longer in stock	€39.46 TTC €27.62 TTC - 30%	€39.46 TTC €27.62 TTC (- 30%)
Diameter : A: 25mm B: 1'' Reference : 7341-251 Stock : 11	A: 25mm B: 1''	7341-251	Available now Stock : 11	€17.01 TTC €11.91 TTC - 30%	€17.01 TTC €11.91 TTC (- 30%)
Diameter : A: 32mm B: 1'' Reference : 7341-321 Stock : 17	A: 32mm B: 1''	7341-321	Available now Stock : 17	€17.46 TTC €12.22 TTC - 30%	€17.46 TTC €12.22 TTC (- 30%)
Diameter : A: 50mm B: 1'1/2 Reference : 7341-50112 Stock : 0	A: 50mm B: 1'1/2	7341-50112	This product is no longer in stock	€47.73 TTC €33.41 TTC - 30%	€47.73 TTC €33.41 TTC (- 30%)
Diameter : A: 50mm B: 2'' Reference : 7341-502 Stock : 0	A: 50mm B: 2''	7341-502	This product is no longer in stock	€61.94 TTC €43.36 TTC - 30%	€61.94 TTC €43.36 TTC (- 30%)
Diameter : A: 63mm B: 2'' Reference : 7341-632 Stock : 0	A: 63mm B: 2''	7341-632	This product is no longer in stock	€83.86 TTC €58.70 TTC - 30%	€83.86 TTC €58.70 TTC (- 30%)
Diameter : A: 75mm B: 2''1/2 Reference : 7341-75212 Stock : 0	A: 75mm B: 2''1/2	7341-75212	This product is no longer in stock	€141.86 TTC €99.30 TTC - 30%	€141.86 TTC €99.30 TTC (- 30%)
Diameter : A: 90mm B: 3'' Reference : 7341-903 Stock : 0	A: 90mm B: 3''	7341-903	This product is no longer in stock	€134.88 TTC €94.41 TTC - 30%	€134.88 TTC €94.41 TTC (- 30%)
Diameter : A: 32mm B: 3/4'' Reference : 7341-3234 Stock : 6	A: 32mm B: 3/4''	7341-3234	Available now Stock : 6	€19.42 TTC €13.60 TTC - 30%	€19.42 TTC €13.60 TTC (- 30%)
Diameter : A: 40mm B: 1''1/4 Reference : 7341-40114 Stock : 6	A: 40mm B: 1''1/4	7341-40114	Available now Stock : 6	€31.58 TTC €22.11 TTC - 30%	€31.58 TTC €22.11 TTC (- 30%)
Diameter : A: 16mm B: 3/8'' Reference : 7341-1638 Stock : 9	A: 16mm B: 3/8''	7341-1638	Available now Stock : 9	€10.30 TTC €7.21 TTC - 30%	€10.30 TTC €7.21 TTC (- 30%)
Diameter : A: 32mm B: 1''1/4 Reference : 7341-32114 Stock : 17	A: 32mm B: 1''1/4	7341-32114	Available now Stock : 17	€27.54 TTC €19.28 TTC - 30%	€27.54 TTC €19.28 TTC (- 30%)
Diameter : A: 40mm B: 1'' Reference : 7341-401 Stock : 0	A: 40mm B: 1''	7341-401	This product is no longer in stock	€28.45 TTC €19.91 TTC - 30%	€28.45 TTC €19.91 TTC (- 30%)
